Pichia pastoris High-Throughput Screening Platform

Engineering Pichia pastoris for recombinant protein production often faces a major limitation: the inability to efficiently screen large genetic libraries. Traditional expression systems rely on chromosomal integration, which introduces variability in copy number and integration site, while also limiting transformation efficiency. These constraints slow down design–build–test cycles and restrict the number of variants that can be evaluated.

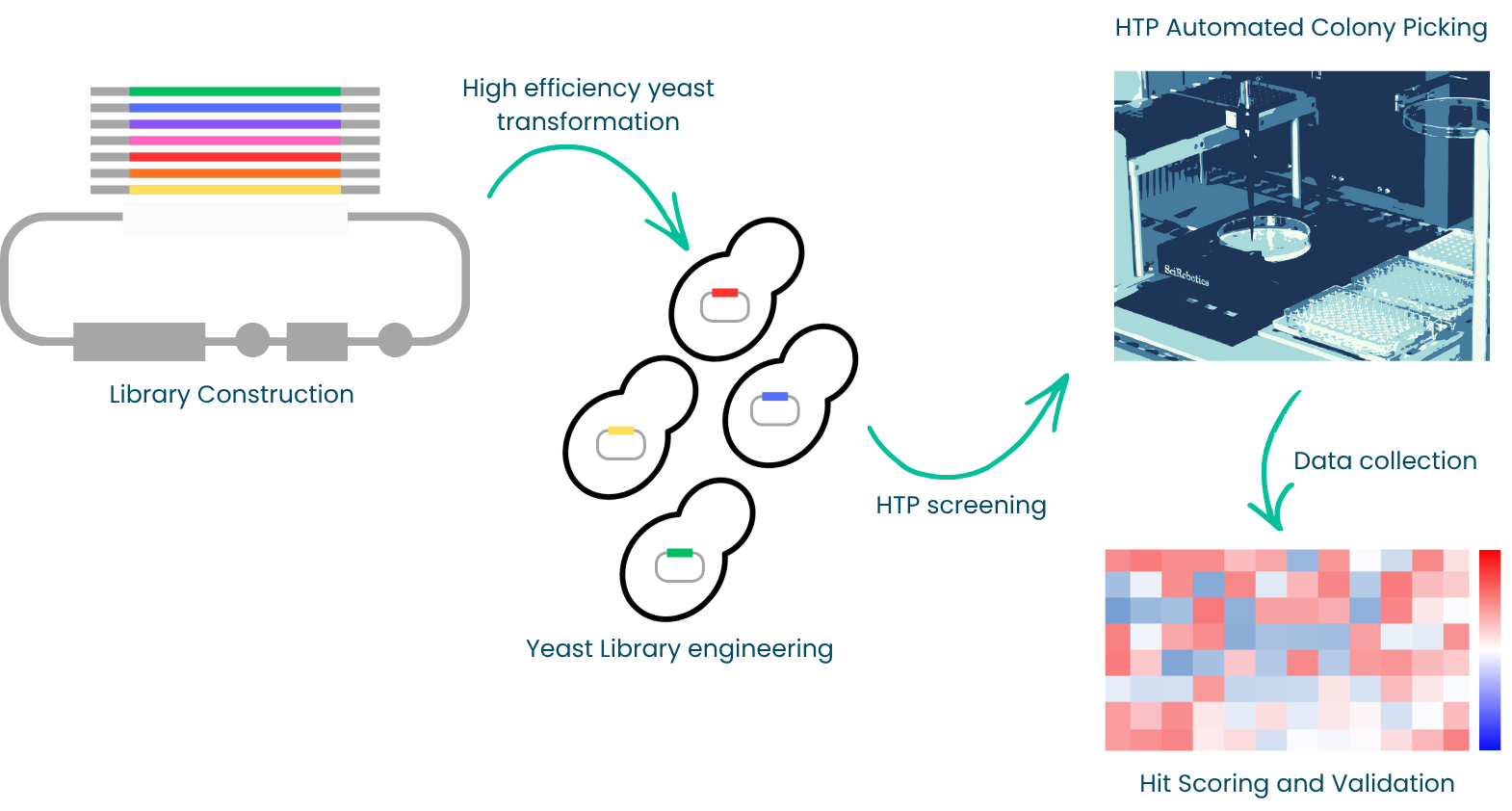

To address this challenge, Alagene developed an episomal screening platform designed for rapid evaluation of large variant libraries in Pichia pastoris. By maintaining expression constructs episomally during early screening, the platform eliminates the need for genomic integration and enables high-throughput assessment of hundreds to thousands of variants in parallel. This significantly expands the design space and accelerates identification of high-performing constructs.

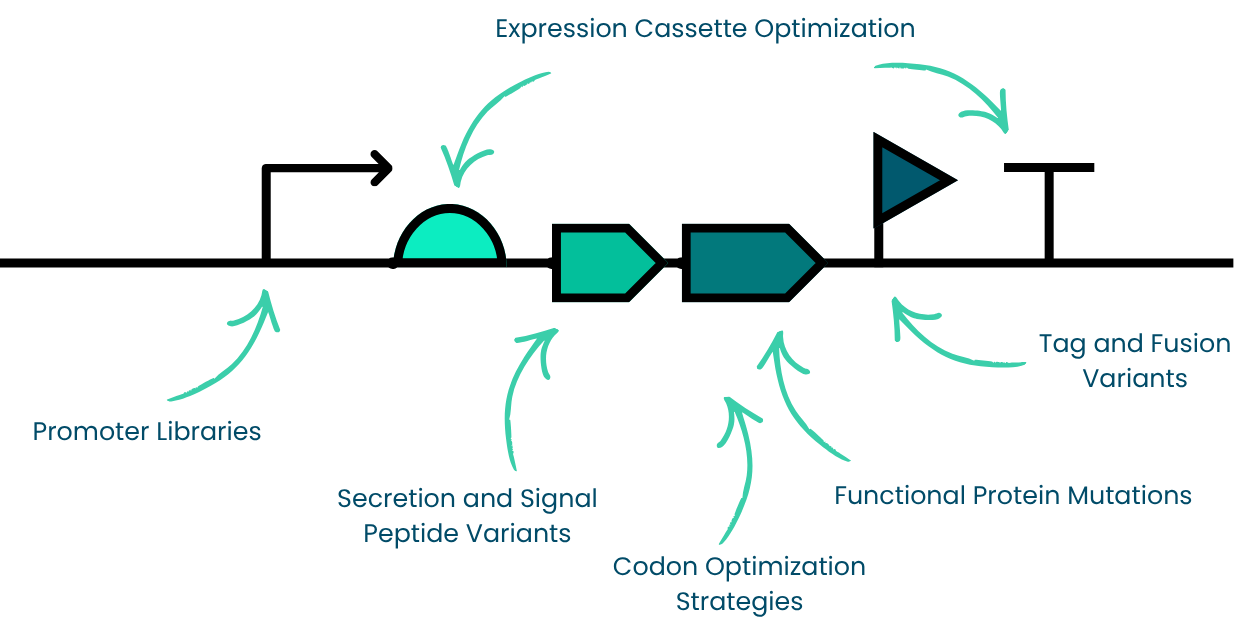

The approach supports multi-dimensional optimization of expression systems, allowing simultaneous evaluation of promoter strength, codon optimization strategies, secretion signals, protein mutations, and fusion tags. This enables systematic improvement of protein yield, secretion efficiency, and functional performance directly in the production host.

Promoter Libraries

Promoter strength plays a central role  in determining recombinant protein expression levels. Screening promoter  libraries allows identification of promoter variants that balance expression  strength, metabolic burden, and protein folding capacity.

1. Codon Optimization  Strategies

Different codon usage strategies can  have significant effects on translation efficiency, protein folding, and  secretion. The episomal platform enables parallel testing of multiple  codon-optimized gene variants to identify sequences that maximize expression  in Pichia.

2. Functional Protein Mutations

Protein engineering frequently requires  screening large numbers of sequence variants to identify mutations that  improve activity, stability, or binding properties. The episomal platform  allows large mutant libraries to be expressed directly in Pichia, enabling  functional screening in the same host used for downstream development.

Expression Cassette Optimization

Expression levels can be strongly  influenced by regulatory elements within the expression cassette. Libraries  of regulatory variants can be evaluated to determine the optimal combination  of genetic components for a given protein.

Secretion and Signal Peptide Variants

Efficient secretion is critical for  many recombinant proteins produced in Pichia. Libraries of signal peptides or  secretion signals can be evaluated to identify sequences that improve  secretion efficiency for specific target proteins.

Tag and Fusion Variants

Fusion tags, secretion enhancers, and  stabilization domains can significantly influence protein yield and  solubility. Libraries of fusion constructs can be rapidly evaluated to  determine the most effective configuration for a given protein.

Importantly, insights generated during high-throughput screening are directly translated into stable production strains. Once optimal configurations are identified, they are transferred into chromosomally integrated systems suitable for scalable fermentation, bridging discovery and industrial biomanufacturing.
